- Do not open the housing: loaded spring
- Hold MEMOLUB® down during manual checks
- Leq <70 dB
- Use MEMOLUB® only for greasing machinery
- Use only lubricant cartridges and batteries recommended by the manufacturer
Memolub® EM KNOWLEDGE BASE
Dimensions
Standard
120cc I 4oz
Precautions
INSIDE THE BOX
MEMOLUB® EM Pump
MEMOLUB® Housing Kit
MEMOLUB® EM Memo Kit
Settings
SETTINGS
MEMO COLOR | AV. DAILY OUTPUT | REFILLING FREQUENCY VS. CARTRIDGE CONTENT (120CC) |
---|---|---|
0.15 cc/day | 24 months | |
0.30 cc/day | 12 months |
REMOTE INSTALLATION DISTANCES
TYPE OF INSTALLATION | MAXIMUM DISTANCE |
---|---|
Single point | 2m |
Specifications
Electric Specifications
MEMOLUB® EM | |
---|---|
Power Source | Battery |
Voltage | 4.5V DC (3x1.5V DC AA) |
Short circuit protection | Yes |
Stroke duration | 8 seconds |
Minimum stroke interval | 15 minutes |
Others
MEMOLUB® EM | |
---|---|
Operating Temperature | 5°F* to 122°F (-15°C* to 50°C) |
Connections | 1⁄4 BSP |
Lubricants | Oil and Grease (up to NLGI #2 with an oil base between 100 and 460 cSt)** |
Maximum stroke pressure | 10 bar / 240 PSI |
* Batteries + lubricant adapted for low temperatures.
** For any other viscosity level please contact your local distributor.
INSTALLATION GUIDELINES
DIRECT INSTALLATION
-
1
Prime lube point and remove nipple.
-
2
Choose Memo according to "Settings" table above. Install Memo on lube point using a strong threadlocker (BSP 1/4 M) .
-
3
Install MEMOLUB® EM on Memo.
-
4
MEMOLUB® EM works immediately.
REMOTE INSTALLATION
-
1
Prime lube point and remove nipple.
-
2
Secure the mounting bracket.
-
3
Choose EM Memo according to "Settings" table above. Install EM Memo and F1/4 fitting on bracket using a strong threadlocker.
-
4
Install BSP 1/8 fitting on lube point.
-
5
Cut hose to required size.
-
6
Insert hose into EM Memo's quick fitting.
-
7
Insert hose into lube point’s quick fitting.
-
8
Install MEMOLUB® EM on EM Memo.
-
9
MEMOLUB® EM works immediately.
CARTRIDGE REPLACEMENT GUIDELINES
-
1
Open (fingers on ribs).
-
2
Prime MEMOLUB® EM pump.
-
3

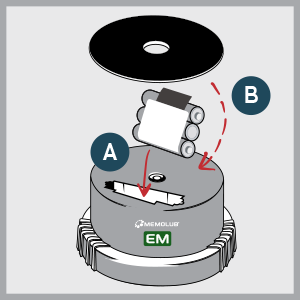

Insert new battery pack and seal. NOTE: the battery seal can be removed for 480cc cartridges.
-
4
Squeeze air out of the cartridge.
-
5
Replace cartridge on MEMOLUB® EM pump.
-
6

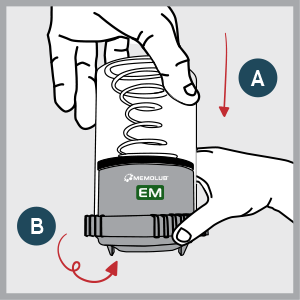

Close and lock (fingers on ribs).
FAQ
-
How can I test and/or check if MEMOLUB® EM is functioning?
You can test and/or check whether MEMOLUB® EM is working correctly at anytime by unscrewing MEMOLUB® from the MEMO by one turn and screwing it back. MEMOLUB® EM will expulse once after being mounted to the MEMO.
If the environment is too noisy, unscrew MEMOLUB® EM from its MEMO and push the switch at the bottom of the housing for a few seconds. MEMOLUB® EM will then make an expulsion to confirm that electronic, mechanical and batteries are ok.
This operation has to be done with a cartridge inside the MEMOLUB® EM
Complete gavage of the pump with the adequate lubricant.
-
What to do if my MEMOLUB® EM automatic lubricator is not functioning?
Make a manual test of MEMOLUB® EM by using a MEMO with the MEMOLUB® EM
If MEMOLUB® EM does not work, check the following:- Is there a battery pack in the MEMOLUB® EM and is it correctly inserted?
- Are the batteries ok? Use another battery pack to double-check.
-
What to do when there is no lubricant coming out of my MEMOLUB® EM?
If MEMOLUB® EM does function, but no grease comes out of the automatic lubricator check the following:
- Is there a lubricant cartridge inside the MEMOLUB® EM? If not, recharge the unit with a cartridge as described in the installation guidelines.
- Was the spring mounted correctly inside the transparent housing? If not, please mount it again as described in the installation guidelines.
- Is the pump of the MEMOLUB® EM primed? If the cartridge of MEMOLUB® EM was totally emptied before replacement, some air could have been sucked into the system and the pump would cavitate for a certain number of cycles. Place a grease handgun on the suction valve of the red housing and pump grease through the unit as explained in the installation guidelines
-
What to do when the lubricant cartridge is not emptied correctly?
If MEMOLUB® EM does function but the lubricant cartridge does not empty or not in the predicted timing there might be that of the following issues occurs:
- The piping is clogged: use a handgun to clear the pipes.
- The piping is damaged. Replace the piping.
- Counter pressure at the MEMOLUB® EM outlet is higher than 10 bar: please respect the tubbing diameters, tubing lengths, and the working temperatures. Also, use fittings with openings larger than 4mm (0.157").
- At working temperature, the base oil viscosity of the grease is higher than 10.000cSt. Please use low temperature lubricants.
-
What to do when the lubricant does not reach the lubrication point?
MEMOLUB® EM does function and empties correctly, however no lubricant is reaching the lubrication point. Possible causes are:
- The piping might be damaged, please check and replace if necessary.
- A fitting is not correctly screwed or sealing is missing, please check and replace or add if necessary.
-
Does MEMOLUB® EM needs specific maintenance?
MEMOLUB® does not require any specific maintenance. When used in humid or dusty atmospheres MEMOLUB® EM can be cleaned with compressed air or a slightly humid rag. To clean MEMOLUB® EM do not use solvents or plunge unit in any liquid. It is also possible to equip your MEMOLUB® EM with a protection cover. For additional information, please contact your local MEMOLUB® dealer.
REGULATORY INFORMATION
SYMBOL | DESCRIPTION |
---|---|
This product is compliant with Directives 2006/42/EU (Machinery) and 2014/34/EU (Equipment in potentially explosives atmospheres - classification II 3 G for gases, II 3 D for dusts). The relevant Declaration of Conformity is available here. | |
This product is compliant with UK regulations 2008 No. 1597 (Supply of Machinery) and 2016 No. 1107 (Equipment for Use in Potentially Explosive Atmospheres). The relevant Declaration of Conformity is available here. | |
This product is compliant with customs union technical regulation TR CU 010/2011 (safety of machines and equipment) and TP TC 012/2011 (safety of equipment for use in explosive atmospheres). The relevant Declaration of Conformity is available here. | |
The WEEE symbol is attached to the product in compliance with the EU directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). It is intended to deter the improper disposal of this product and to promote reuse and recycling. | |
The packaging material can be recycled. Please arrange for the environmental appropriate disposal of the packaging. | |
This product is compliant with EN IEC 600790-15 (nC IIC T6 Gc) | |
This product is compliant with EN IEC 600790-15 (tc IIIC T85°C) |
Memolub® EM
- Reusable autonomous single point lubrication system
- Battery powered.
- 140psi (10 bar) ejection pressure.
- Use with grease or oil.
- Remote installation up to 6 feet (2 m)
- 2 settings
