Memolub® EPS Memory KNOWLEDGE BASE

Dimensions

Standard

120cc I 4oz
Memolub EPS Dimentions 120

Mega

240cc I 8.1oz
Memolub EPS Dimentions 240

Giga

480cc I 16.2oz
Memolub EPS Dimentions 480

OIL R-500

500cc I 16.9oz
Memolub EPS Dimentions 500

Precautions

  • Do not open the housing: loaded spring
  • Hold MEMOLUB® down during manual checks
  • Leq <70 dB
  • Use MEMOLUB® only for greasing machinery
  • Use only lubricant cartridges and batteries recommended by the manufacturer
Memolub Precautions No Atex

INSIDE THE BOX

ML 10005

MEMOLUB® EPS MEMORY Pump

ML 1204

MEMOLUB® Housing Kit

Memo cc

MEMOLUB® EPS Memo Kit

Settings & Installation

FREQUENCY SETTINGS

MEMO COLOR COMBINATION DOSING PERIODICITY MAX. DAILY OUTPUT* REFILLING FREQUENCY VS. CARTRIDGE CONTENT (120CC) REFILLING FREQUENCY VS. CARTRIDGE CONTENT (240CC) REFILLING FREQUENCY VS. CARTRIDGE CONTENT (480CC)
+ + 1 hour 15.12 cm³/day 0.25 month 0.5 month 1 month
+ 3 hours 7.56 cm³/day 0.5 month 1 month 2 months
+ 6 hours 2.52 cm³/day 1.5 months 3 months 6 months
12 hours 1.26 cm³/day 3 months 6 months 12 months
+ 18 hours 0.95 cm³/day 4 months 8 months 16 months
24 hours 0.63 cm³/day 6 months 12 months -
48 hours 0.32 cm³/day 12 months -

*Maximum daily output without stroke washers.

VOLUME SETTINGS [cc/day]

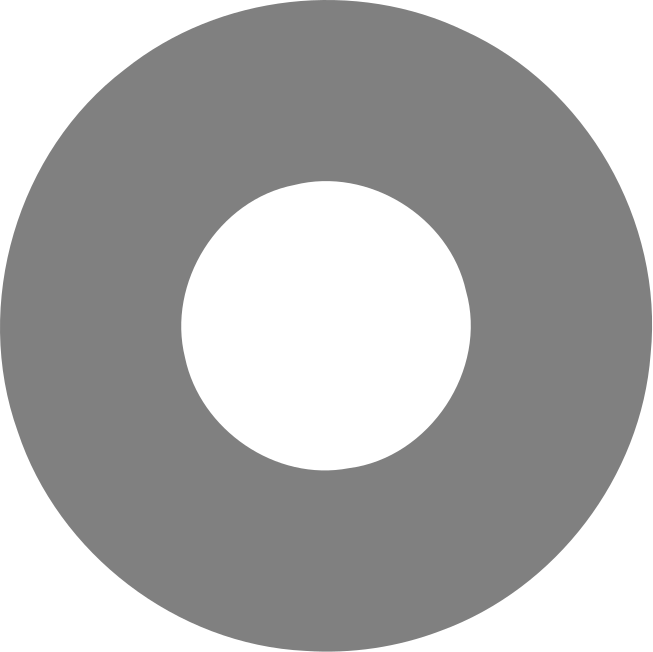

NUMBER OF STROKE WASHERS* MEMO RINGS COMBINATION
+ + + + +
15.12 cm³ 7.56 cm³ 2.52 cm³ 1.26 cm³ 0.95 cm³ 0.63 cm³ 0.32 cm³
14.16 cm³ 7.08 cm³ 2.36 cm³ 1.18 cm³ 0.89 cm³ 0.59 cm³ 0.30 cm³
+ 13.20 cm³ 6.60 cm³ 2.20 cm³ 1.10 cm³ 0.83 cm³ 0.55 cm³ 0.28 cm³
2 + 12.24 cm³ 6.12 cm³ 2.04 cm³ 1.02 cm³ 0.77 cm³ 0.51 cm³ 0.26 cm³
3 + 11.28 cm³ 5.64 cm³ 1.88 cm³ - 0.65 cm³ 0.47 cm³ 0.24 cm³
4 + 10.32 cm³ 5.16 cm³ 1.72 cm³ - 0.43 cm³ 0.22 cm³
5 + 9.36 cm³ 4.68 cm³ 1.56 cm³ - 0.39 cm³ 0.20 cm³
6 + 8.40 cm³ 4.20 cm³ 1.40 cm³ - 0.35 cm³ 0.18 cm³
7 + - 3.72 cm³ - 0.16 cm³

*The circlip must always be added on top of the washers.

REMOTE INSTALLATION DISTANCES

TYPE OF INSTALLATION MAXIMUM DISTANCE
Single point 40ft (12m)
Multipoint 30ft (9m)

Specifications

Electric Specifications

MEMOLUB® EPS MEMORY
Power Source External Power Supply (min 15W - 0.6A)
Voltage 24V DC
Short circuit protection Yes
Stroke duration 8 seconds
Minimum stroke interval 15 minutes

Other Specifications

MEMOLUB® EPS MEMORY
Temperature exposure range 5°F* to 122°F (-15°C* to 50°C)
Connections 1/4 NPT
Lubricants Oil and Grease (up to NLGI #2 with an oil base between 100 and 460 cSt)**
Maximum Stroke Presure 25 bar / 350 PSI

* Lubricant adapted for low temperatures.
** For any other viscosity level please contact your local distributor.

INSTALLATION GUIDELINES

DIRECT INSTALLATION

  • 1

    B1

    Prime lube point and remove nipple.

  • 2

    B2

    Install Memo on lube point using a strong threadlocker. Place the ring(s) in Memo according to "Settings" table above.

  • 3

    B3

    Install MEMOLUB® EPS MEMORY on Memo. Connect the cable to the 24V DC power supply.

  • 4

    B4

    MEMOLUB® EPS MEMORY works immediately. NOTE: if there is no change in the settings (rings) since its last operation, the unit may not pulse immediately.

REMOTE INSTALLATION

  • 1

    C1

    Prime lube point and remove nipple.

  • 2

    C2

    Secure the mounting bracket.

  • 3

    C3

    Install Memo and F1/4 fitting on bracket using a strong threadlocker. Place the ring(s) in Memo according to "Settings" table above.

  • 4

    C4

    Screw BSP 1/8 fitting on lube point.

  • 5

    C5

    Cut hose to required size.

  • 6

    C6

    Insert hose into Memo’s quick fitting.

  • 7

    C7

    Insert hose into lube point’s quick fitting.

  • 8

    C8

    Install MEMOLUB® EPS MEMORY on Memo. Connect the cable to the 24V DC power supply.

  • 9

    C9

    MEMOLUB® EPS MEMORY works immediately. NOTE: if there is no change in the settings (rings) since its last operation, the unit may not pulse immediately.

CARTRIDGE REPLACEMENT GUIDELINES

  • 1

    A1

    Open (fingers on ribs).

  • 2

    A2

    Prime MEMOLUB® EPS MEMORY pump

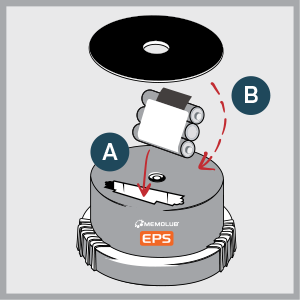

  • 3

    A3

    Insert new battery pack and seal. NOTE: the battery seal can be removed for 480cc cartriges.

  • 4

    A4

    Squeeze air out of the cartridge

  • 5

    A5

    Replace cartridge on MEMOLUB® EPS MEMORY pump

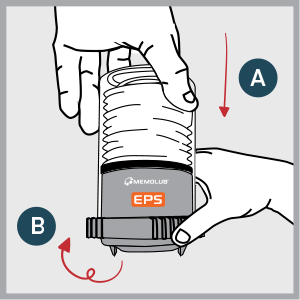

  • 6

    A6

    Close and lock (fingers on ribs).

FAQ

  • How can I test and/or check if MEMOLUB® EPS MEMORY is functioning?

    You can test and/or check whether MEMOLUB® EPS MEMORY is working correctly at anytime by unscrewing MEMOLUB® EPS MEMORY from its MEMO. Then push one the three switches at the bottom of the housing for a few seconds (in case there is only 1 ring in the MEMO, choose another switch than the corresponding one). MEMOLUB® EPS MEMORY will then make an expulsion to confirm that electronic, mechanical and batteries are ok.

    Operate this operation three times pushing each switch at least once to ensure all three switches are operational and the complete gavage of the pump with the adequate lubricant. This operation has to be done with a cartridge inside the MEMOLUB® EPS MEMORY.

  • What to do if my MEMOLUB® EPS MEMORY automatic lubricator is not functioning?

    Make a manual test of MEMOLUB® EPS MEMORY by using a MEMO with the three rings in the ring-holder.

    If MEMOLUB® EPS MEMORY does not work, check the following:

    • Is the voltage power supply ON?
    • Does the voltage have the right amplitude (24Vdc) and polarity (brown=positive, blue=negative) ?
    • Is there any discontinuity in the wiring?
    • Are there one or more plastic rings inside the ring-holder? If not, no switch will be activated and MEMOLUB® EPS MEMORY will not work. Make sure you insert them correctly as explained in the installation guidelines.
  • What to do when there is no lubricant coming out of my MEMOLUB® EPS MEMORY?

    If MEMOLUB® EPS MEMORY does function, but no grease comes out of the automatic lubricator, check the following:

    • Is there a lubricant cartridge inside the MEMOLUB® EPS MEMORY? If not, recharge the unit with a cartridge as described in the installation guidelines.
    • Was the spring mounted correctly inside the transparent housing? If not, please mount it again as described in the installation guidelines.
    • Is the pump of the MEMOLUB® EPS MEMORY primed? If the cartridge of MEMOLUB® EPS MEMORY was totally emptied before replacement, some air could have been sucked into the system and the pump would cavitate for a certain number of cycles. Place a grease handgun on the suction valve of the blue housing and pump grease through the unit as explained in the installation guidelines.
  • What to do when the lubricant cartridge is not emptied correctly?

    If MEMOLUB® EPS MEMORY does function but the lubricant cartridge does not empty or not in the predicted timing there might be that of the following issues occurs:

    • The piping is clogged: use a handgun to clear the pipes.
    • One of the outlets of the distributor block has been voluntarily obstructed. Use bridging elements to reduce the number of outlets of a distributor block.
    • The piping is damaged. Replace the piping.
    • Counter pressure at the MEMOLUB® EPS MEMORY outlet is higher than 13 bar: please respect the tubbing diameters, tubing lengths, the number of outlets per distribution block and the working temperatures. Also, use fittings with openings larger than 4mm (0.157").
    • At working temperature, the base oil viscosity of the grease is higher than 10.000cSt. Please use low temperature lubricants.
  • What to do when the lubricant does not reach the lubrication point?

    MEMOLUB® EPS MEMORY does function and empties correctly, however no lubricant is reaching the lubrication point. Possible causes are:

    • The piping might be damaged, please check and replace if necessary.
    • A fitting is not correctly screwed or sealing is missing, please check and replace or add if necessary.
  • Does MEMOLUB® EPS MEMORY needs specific maintenance?

    MEMOLUB® EPS MEMORY does not require any specific maintenance. When used in humid or dusty atmospheres MEMOLUB® EPS MEMORY can be cleaned with compressed air or a slightly humid rag. To clean MEMOLUB® EPS MEMORY do not use solvents or plunge unit in any liquid. It is also possible to equip your MEMOLUB® EPS MEMORY with a protection cover. For additional information, please contact your local MEMOLUB® dealer.

REGULATORY INFORMATION

SYMBOL DESCRIPTION
This product is compliant with Directives 2006/42/EC (Machinery). The relevant Declaration of Conformity is available here.
This product is compliant with UK regulations 2008 No. 1597 (Supply of Machinery). The relevant Declaration of Conformity is available here.
This product is compliant with customs union technical regulation TR CU 010/2011 (safety of machines and equipment). The relevant Declaration of Conformity is available here.
The WEEE symbol is attached to the product in compliance with the EU directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). It is intended to deter the improper disposal of this product and to promote reuse and recycling.
The packaging material can be recycled. Please arrange for the environmental appropriate disposal of the packaging.
Memolub Automotive
Memolub EPS Memory 2022 Grouped

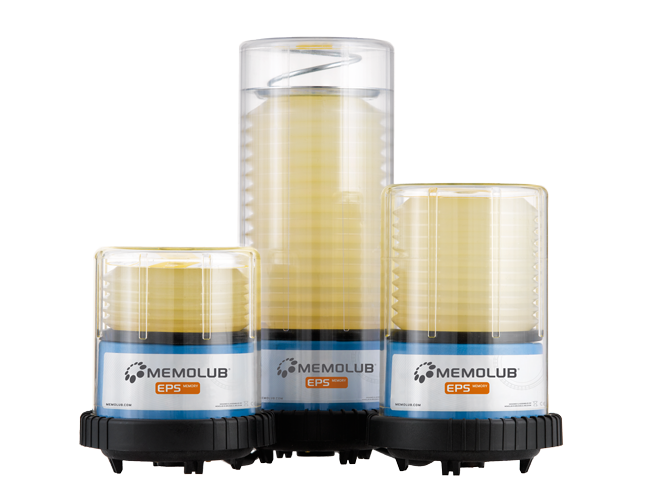

Memolub® EPS Memory

  • Reusable single & multi-point lubrication system.
  • Internal memory to register elapsed time until next stroke.
  • 24V powered.
  • 140psi (25 bar) ejection pressure.
  • Up to 12 outlets.
  • Remote installation up to 40 feet (12 m).
  • 52 Settings.
